Home › Hyundai › 2018 › Sonata Limited › Repair and Diagnosis › Electrical › Starter › Button Engine Start System (Except HEV) › Start/Stop Button › Repair procedures › Removal

Repair procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the center facia panel.

    (Refer to "HEATER AND A/C CONTROL UNIT (EXCEPT HEV) ")

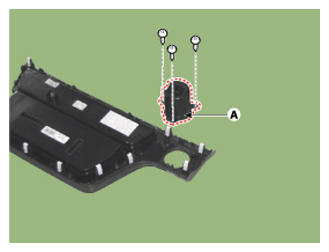

  3. Remove the start/stop button (A) after loosening the screw (3EA).
G12641127Courtesy of HYUNDAI MOTOR AMERICA
