Hyundai
›
2018
›
Sonata Limited
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 2.4L (Except HEV)
›
E-CVVT Motor
›
Troubleshooting
›

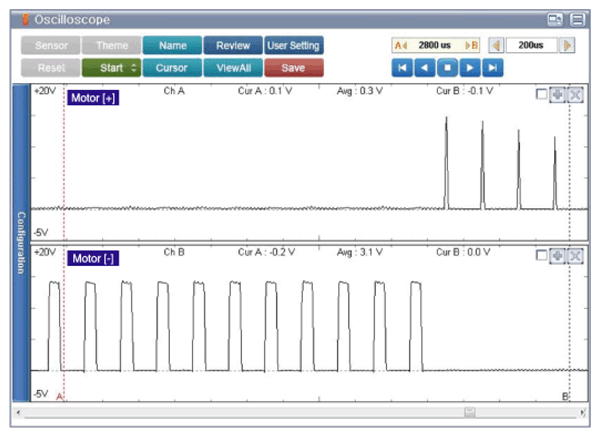

Signal Waveform
Signal Waveform
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA

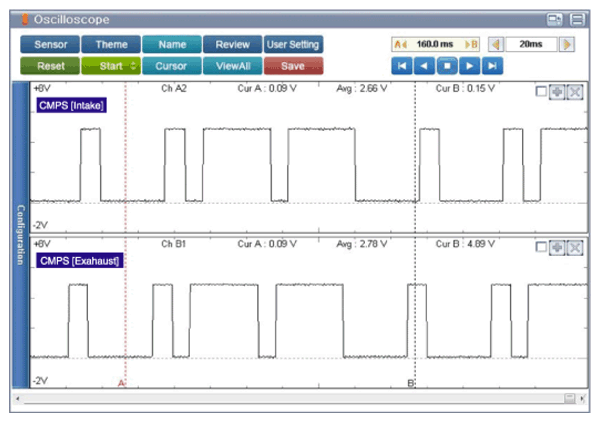

There is no separate sensor inside E-CVVT. Exhaust side 4-flank type target wheel is applied in order to compare CKPS and CMPS and calculate the valve timing.
