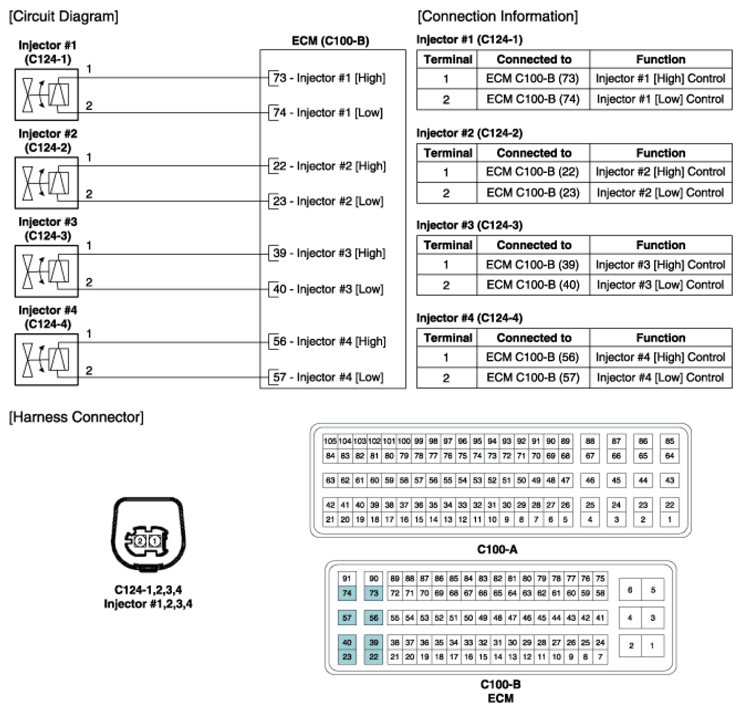

Home › Hyundai › 2018 › Sonata Limited › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.4L (Except HEV) › Injector › Schematic Diagrams › Circuit Diagram
