Rear Power Window Switch

1. Disconnect the negative (-) battery terminal.
2. Remove the rear door trim.

   (Refer to "REAR DOOR TRIM ")

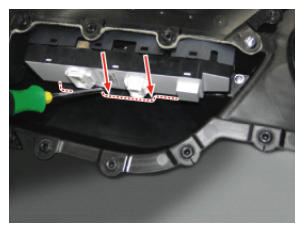

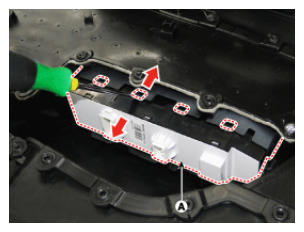

3. Remove the power window switch assembly after disengaging the retaining clips.

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

Information

• Replace any damaged clips.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
