Components And Components Location: Components

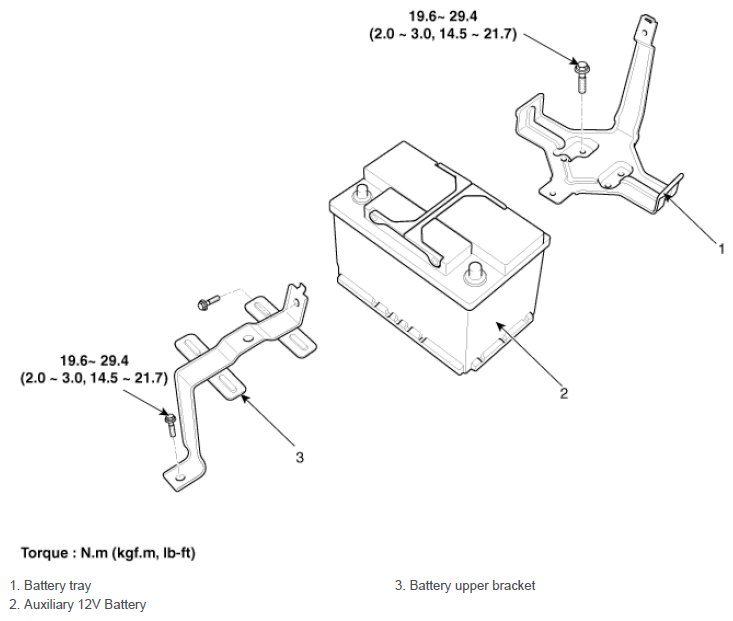

Fig 1: Auxiliary 12V Battery Components Location With Torque Specification
G12786871Courtesy of HYUNDAI MOTOR AMERICA
