Components And Components Location: Components

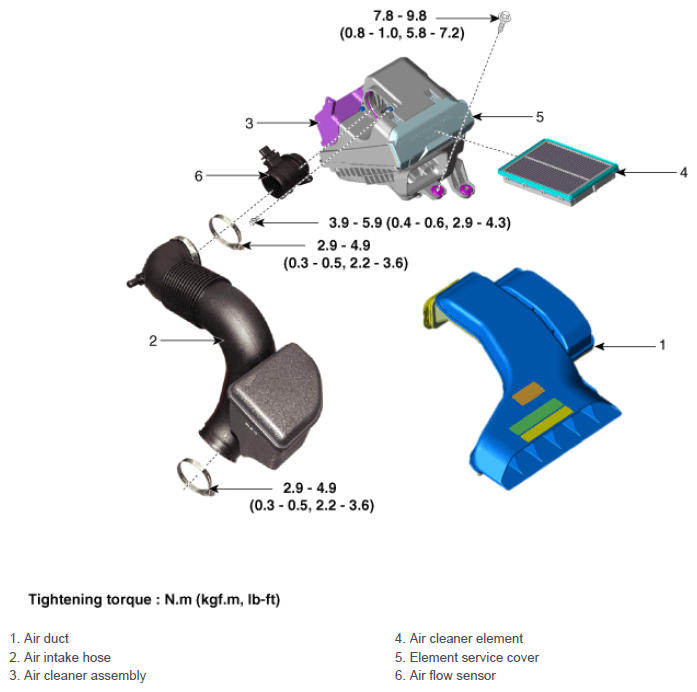

Fig 1: Air Cleaner Components Location With Torque Specification
G12786797Courtesy of HYUNDAI MOTOR AMERICA
