Components And Components Location: Components

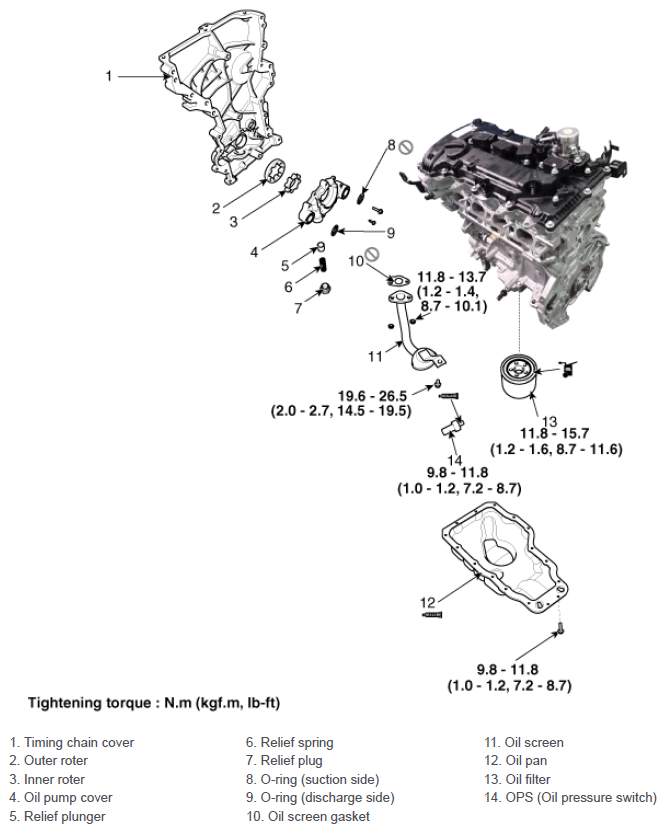

Fig 1: Oil Pump Components Location With Torque Specification
G12786778Courtesy of HYUNDAI MOTOR AMERICA
