Components and Components Location: Components

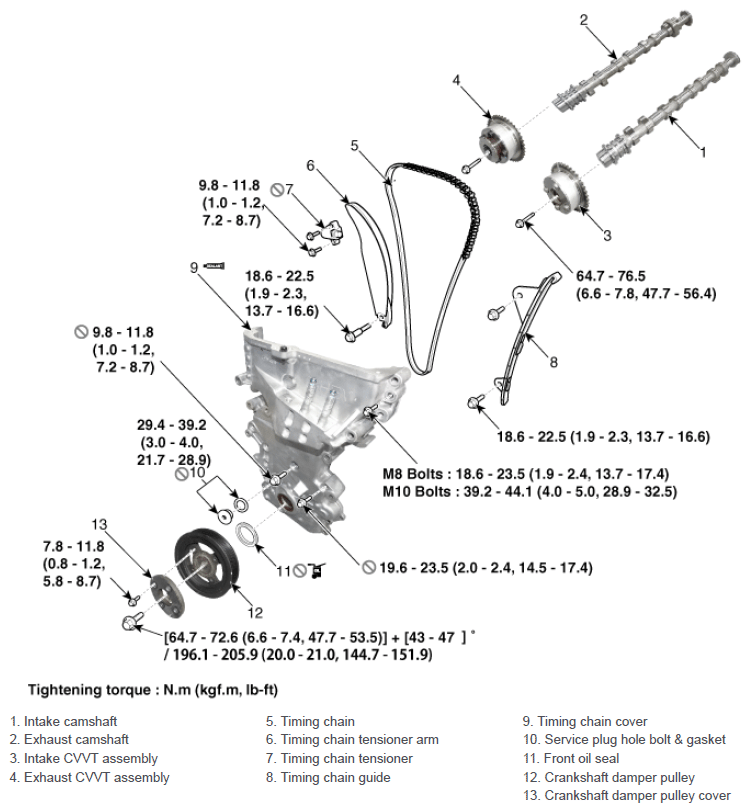

Fig 1: Timing System Components Location With Torque Specification
G12786500Courtesy of HYUNDAI MOTOR AMERICA
