Components and Components Location: Components

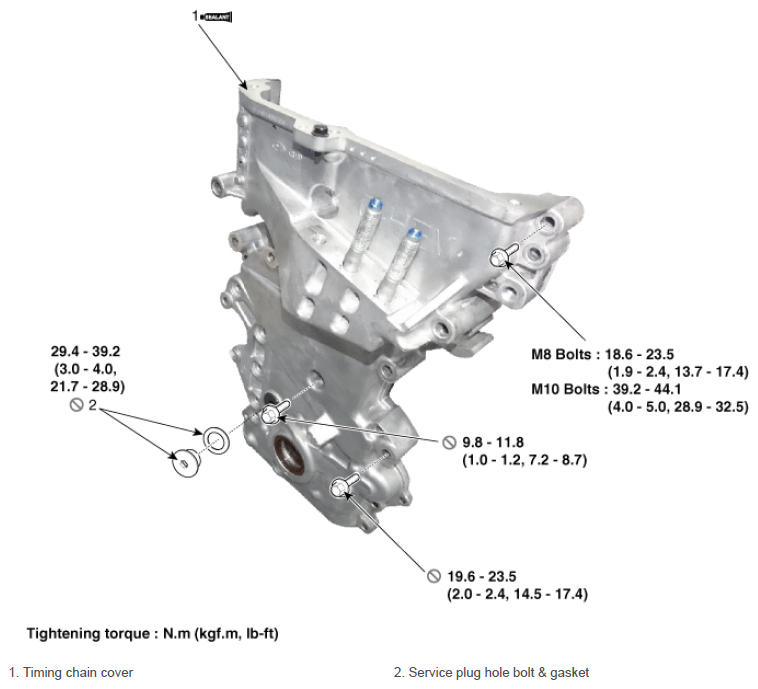

Fig 1: Timing Chain Cover Components Location With Torque Specification
G12786526Courtesy of HYUNDAI MOTOR AMERICA
