Components and Components Location: Components

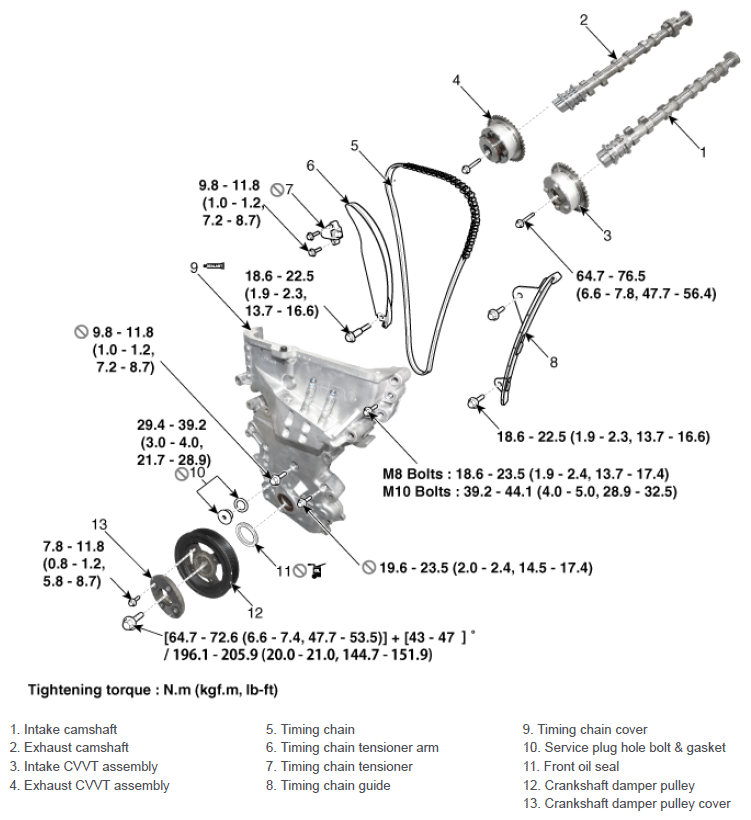

Fig 1: Timing Chain Components Location With Torque Specification
G12786533Courtesy of HYUNDAI MOTOR AMERICA
