Repair Procedures: Removal

  1. Disconnect the negative(-) battery terminal.
  2. Remove the center facia panel.

    (Refer to "CONTROLLER ")

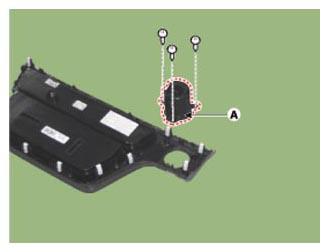

  3. Remove the start/stop button (A) from the center fascia garnish after loosening the mounting screws.
    G12811337Courtesy of HYUNDAI MOTOR AMERICA
