Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) cable.

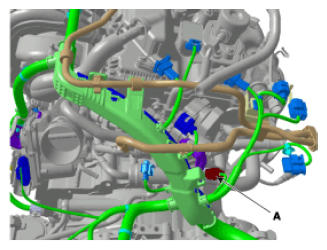

Disconnect the engine coolant temperature sensor connector (A) and then remove the sensor.

Courtesy of HYUNDAI MOTOR AMERICA
Supplement the engine coolant.
(Refer to "COOLANT ")
