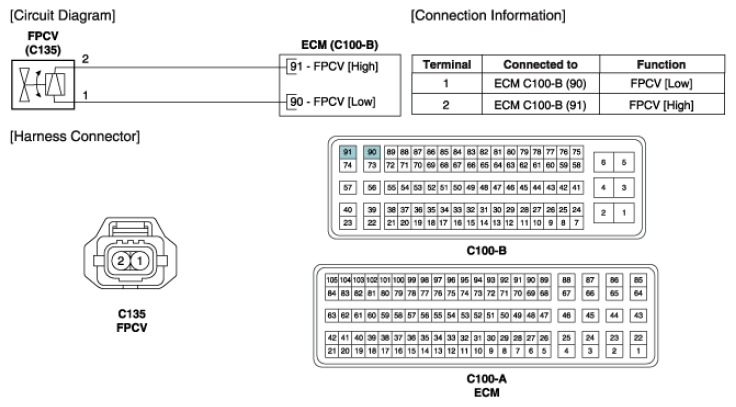

Home › Hyundai › 2018 › Sonata Plug-In Hybrid › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (PHEV) › Fuel Pressure Control Valve (FPCV) › Schematic Diagrams › Circuit Diagram
