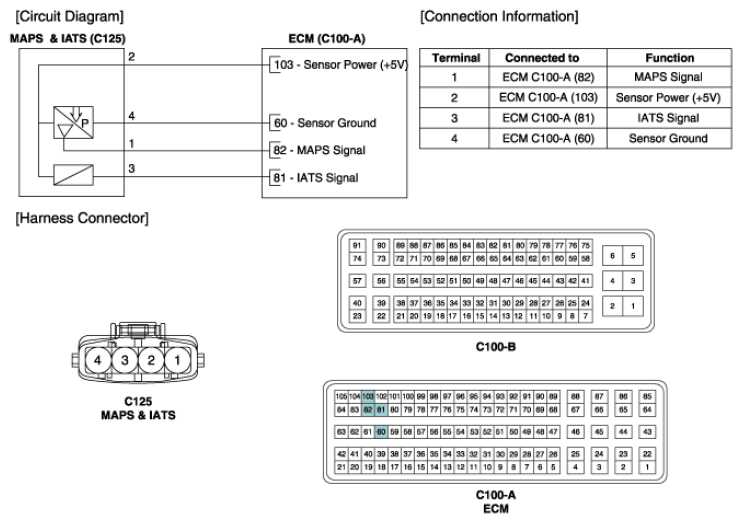

Home › Hyundai › 2018 › Sonata Plug-In Hybrid › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (PHEV) › Manifold Absolute Pressure Sensor (MAPS) › Schematic Diagrams › Circuit Diagram
