Repair Procedures: Removal
- Turn the ignition switch OFF, and then remove battery (-) cable.
- Remove the rear seat cushion.
(Refer to "REAR SEAT ASSEMBLY ")

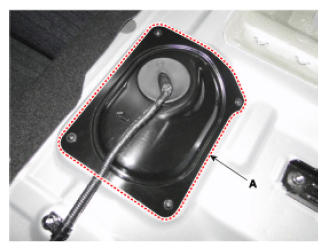

- Remove the fuel pump service cover (A).

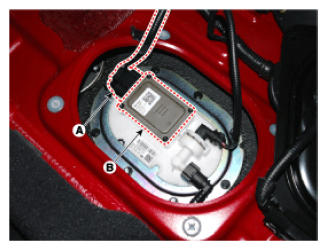

- Disconnect the fuel pump control module connector (A).
- Remove the fuel pressure control module (A) after removing the screws.
