DTC P0133: O2 Sensor Circuit Slow Response (Bank 1/Sensor 1)
›
Specification
›

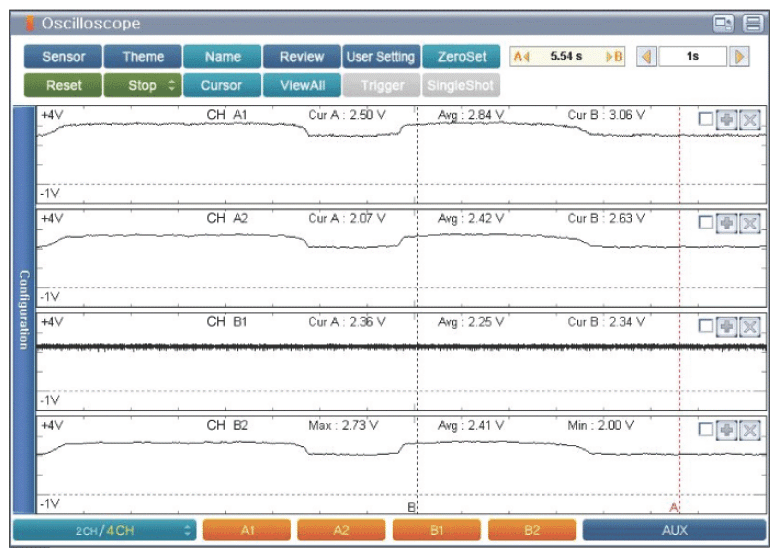

Signal Waveform & Data
Signal Waveform & Data
Courtesy of HYUNDAI MOTOR AMERICA
CH A1 (Nernst cell voltage), CH A2 (Pump cell voltage), CH B1 (Common ground), CH B2 (Compensative resistance)
