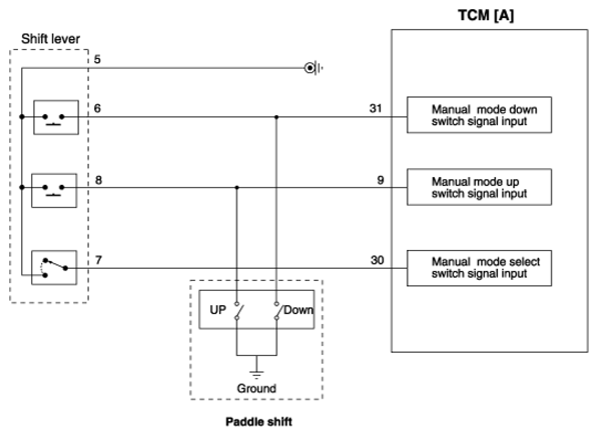

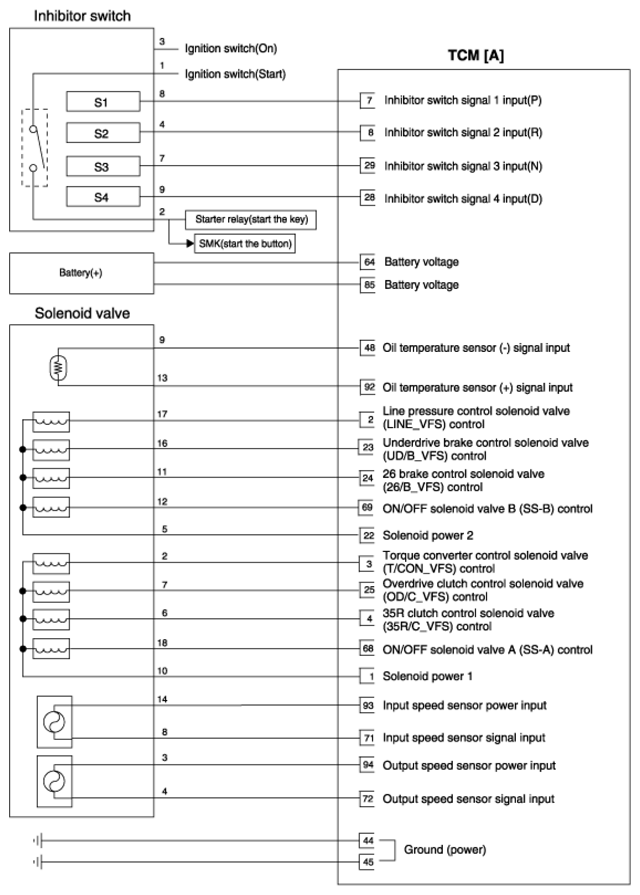

Home › Hyundai › 2018 › Sonata SEL › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System - 2.4L (Except HEV) › Transaxle Control Module (TCM) › Schematic Diagrams › Circuit Diagram
