Home › Hyundai › 2018 › Tucson SE, FWD › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System - 2.0L › Shift Cable › Components and Components Location › Components

Components and Components Location: Components

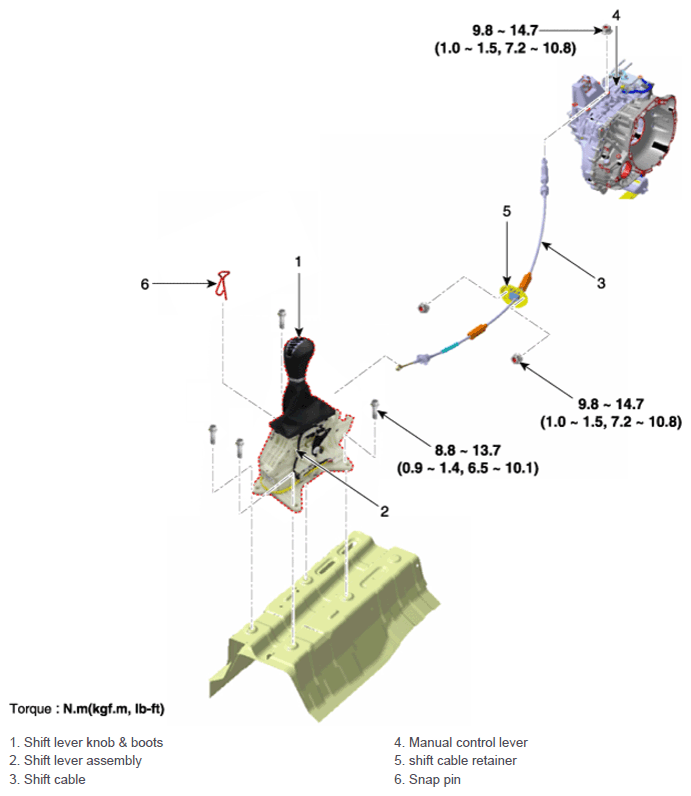

Fig 1: Shift Cable Components With Torque Specification
G12612106Courtesy of HYUNDAI MOTOR AMERICA
