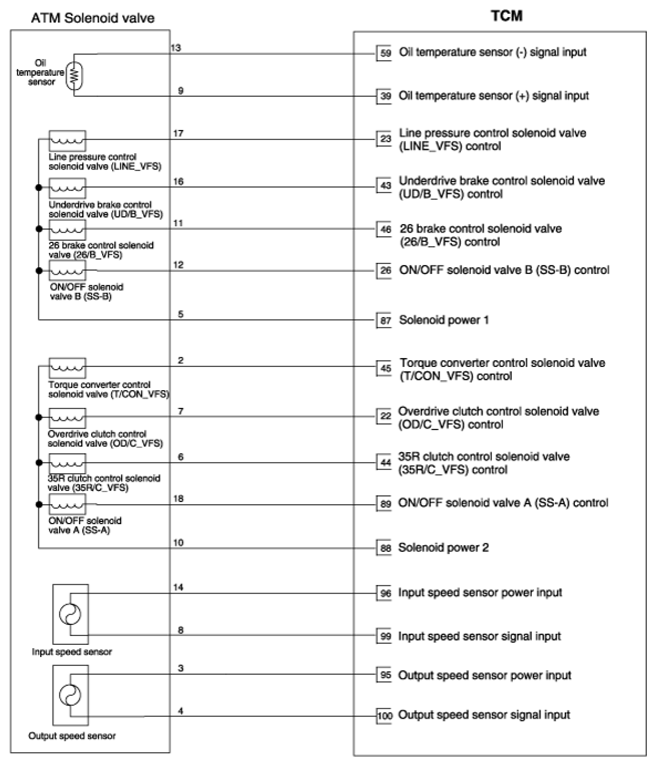

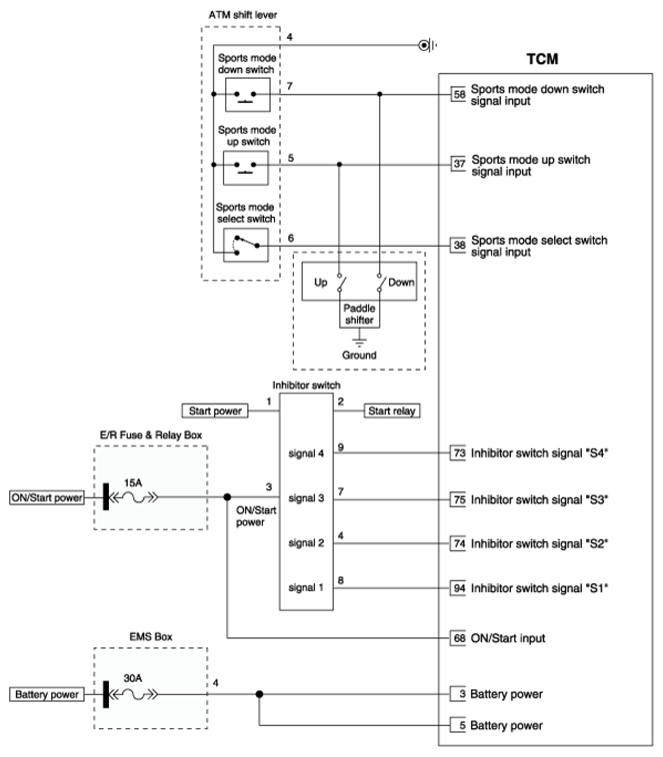

Home › Hyundai › 2018 › Tucson SEL Plus, 4WD › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transaxle Control System - 2.0L › Transaxle Control Module (TCM) › Schematic Diagrams › Circuit Diagram
