Repair Procedures: Inspection

  1. Turn off the ignition switch.
  2. Remove the battery and tray.

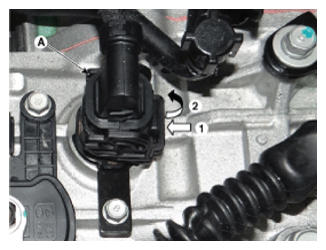

  3. Disconnect the solenoid valve connector (A).
    G12603916Courtesy of HYUNDAI MOTOR AMERICA
  4. Measure the resistance between solenoid valve signal terminal and ground terminal.
  5. Check that the measured resistance is within the specification.
