Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal

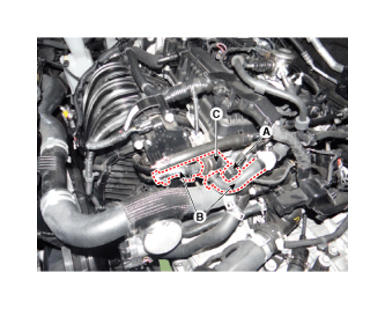

  2. Disconnect the purge control solenoid valve connector (A) and vapor hoses (B)
  3. Remove the purge control solenoid valve (A).
    G12612806Courtesy of HYUNDAI MOTOR AMERICA
