Repair Procedures: Removal
- Release the residual pressure in fuel line.
(Refer to the Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal
- Remove the intake manifold.
(Refer to Engine Mechanical System - INTAKE MANIFOLD )

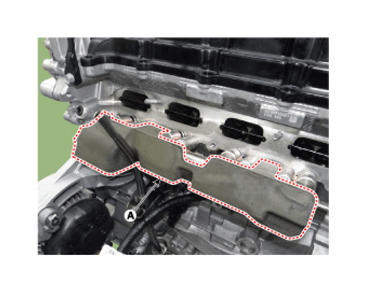

- Remove the delivery pipe foam (A).

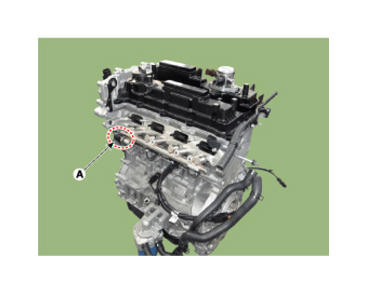

- Disconnect the rail pressure sensor connector (A), and then remove the sensor (B) from the delivery pipe.
