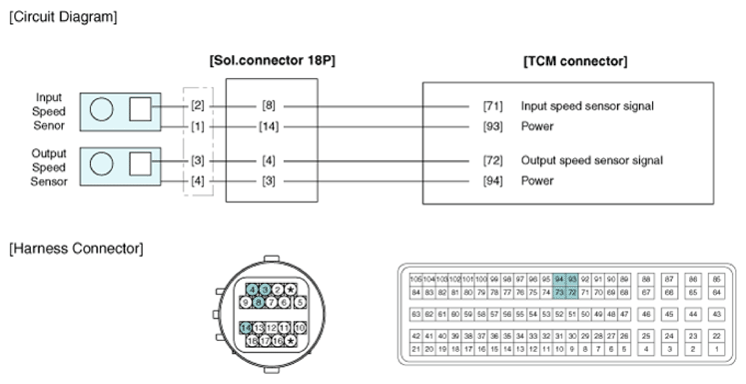

Home › Hyundai › 2018 › Tucson Sport, FWD › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transaxle Control System - 2.4L › Input Speed Sensor › Schematic Diagrams › Circuit Diagram
