Repair Procedures: Removal
CAUTION:
- After replacing with a new power liftgate module, check for DTC code at all times.
If DTC code B24B0 exists, perform power liftgate mode change.
(Refer to Power Liftgate Module - "TROUBLESHOOTING ")
- After replacing with a new power liftgate module, perform the system initialization.
(Refer to Power Liftgate Module - "TROUBLESHOOTING ")
- Before delivery to customer, operate the power liftgate to be sure that there is no warning sound.
- Disconnect the negative (-) battery terminal.
- Remove the luggage side trim [LH].
(Refer to Body - "LUGGAGE SIDE TRIM ")

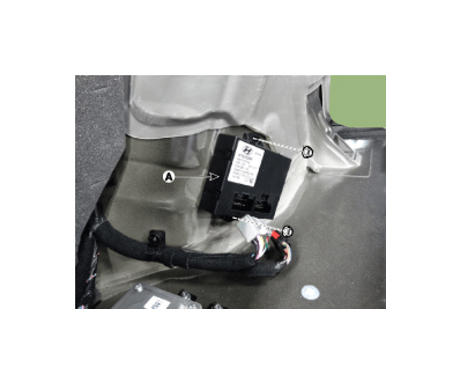

- Remove the power liftgate module (A) after loosening the nuts and disconnecting the connectors.
