Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  2. Remove the driver airbag module by putting in a flat tool (Ø5 mm) into the guide hole and then press the fixed wire.

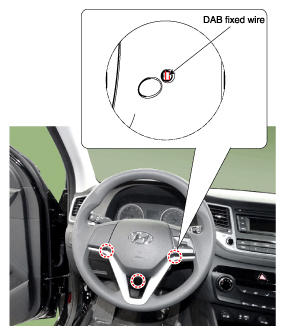

    Fig 1: Removing Driver Airbag Module
    G12041393Courtesy of HYUNDAI MOTOR AMERICA
  3. Disconnect the horn connector (B).
    Fig 2: Disconnecting Horn Connector
    G12041394Courtesy of HYUNDAI MOTOR AMERICA
  4. Release the connector locking pin, then disconnect the driver airbag module connector (A).
    Fig 3: Disconnecting Driver Airbag Module Connector
    G12041395Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: The removed airbag module should be stored in a clean, dry place with the pad cover facing up.
  5. Remove the steering wheel and steering wheel column shroud (A).

    (Refer to Steering System - "STEERING WHEEL " and "MOTOR DRIVEN POWER STEERING ")

    Fig 4: Removing Steering Wheel And Steering Wheel Column Shroud
    G12041396Courtesy of HYUNDAI MOTOR AMERICA
  6. Disconnect the clock spring (A) and horn connector (B), then remove the clock spring.
Fig 5: Disconnecting Clock Spring And Horn Connector
G12041397Courtesy of HYUNDAI MOTOR AMERICA
