Section 88 (Power Lift Gate System)
›
Description And Operation
›
Operating Principle
›
Calibration Mode
Calibration Mode
WARNING:
This page is about a different car, the 2017 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

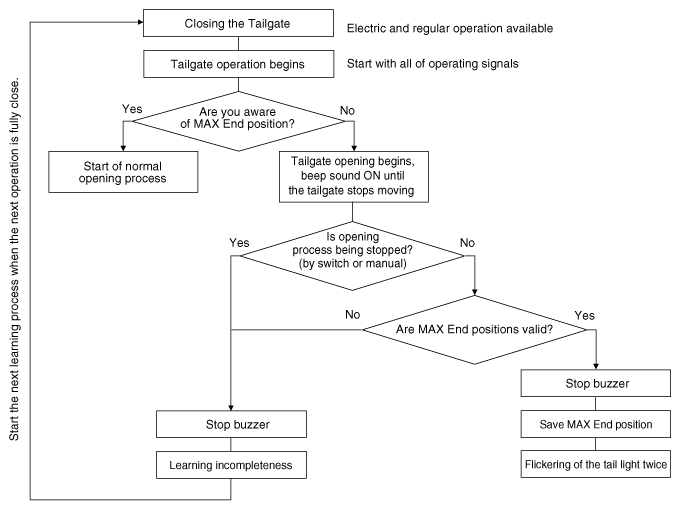

Fig 1: Calibration Mode Flow Chart
Courtesy of HYUNDAI MOTOR AMERICA
