Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad under cover.

    (Refer to Body - "CRASH PAD UNDER COVER ")

  3. Disconnect the body control module connectors (A).
    G12614549Courtesy of HYUNDAI MOTOR AMERICA

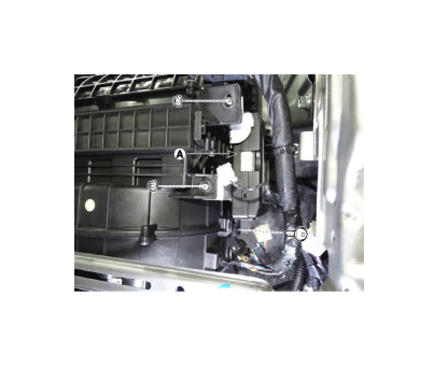

  4. Remove the body control module (A) after loosening the mounting nuts and screw.
    G12614550Courtesy of HYUNDAI MOTOR AMERICA
