Power Window Switch
›
Schematic Diagrams
›
Circuit Diagram
›
Assist Power Window Switch
›
Rear Power Window Switch
Rear Power Window Switch

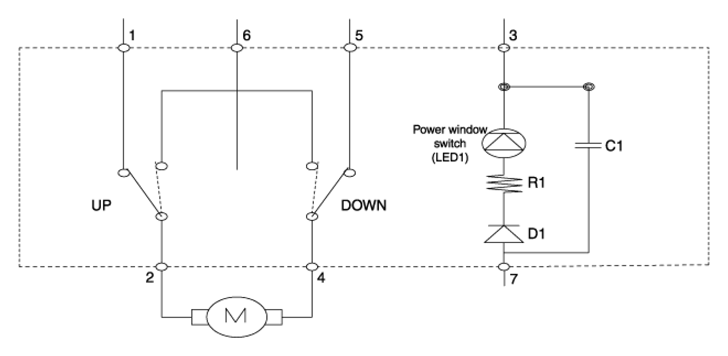

[Rear Power Window Switch (Manual)]
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
