Repair Procedures: Disassembly

  1. Remove the rear cover (A) after removing nuts.
    G12608870Courtesy of HYUNDAI MOTOR AMERICA
  2. Remove the mounting bolts (A) and the brush holder assembly (B).
    G12608871Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the slip ring guide (A) after pulling it.
    G12608872Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the OAD (Overrunning Alternator Decoupler) cap.
    NOTE:
    • When installing, replace with new OAD cap.
  5. Remove the OAD (Overrunning Alternator Decoupler) pulley (A) using the special tool.
    G12608873Courtesy of HYUNDAI MOTOR AMERICA
  6. Unsolder the 3 stator leads (A).
    G12608874Courtesy of HYUNDAI MOTOR AMERICA

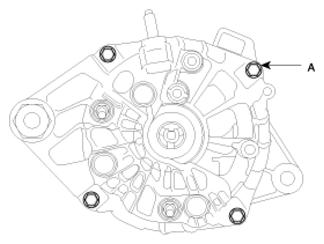

  7. Remove the 4 through bolts (A).
    G12608875Courtesy of HYUNDAI MOTOR AMERICA

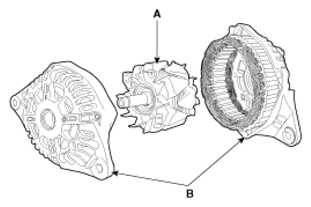

  8. Disconnect the rotor (A) and bracket (B).
    G12608876Courtesy of HYUNDAI MOTOR AMERICA
