Home › Hyundai › 2018 › Tucson Value, FWD › Repair and Diagnosis › Engine Mechanical › Lubrication System - 1.6L › Oil Pump › Components and Components Location › Components

Components and Components Location: Components

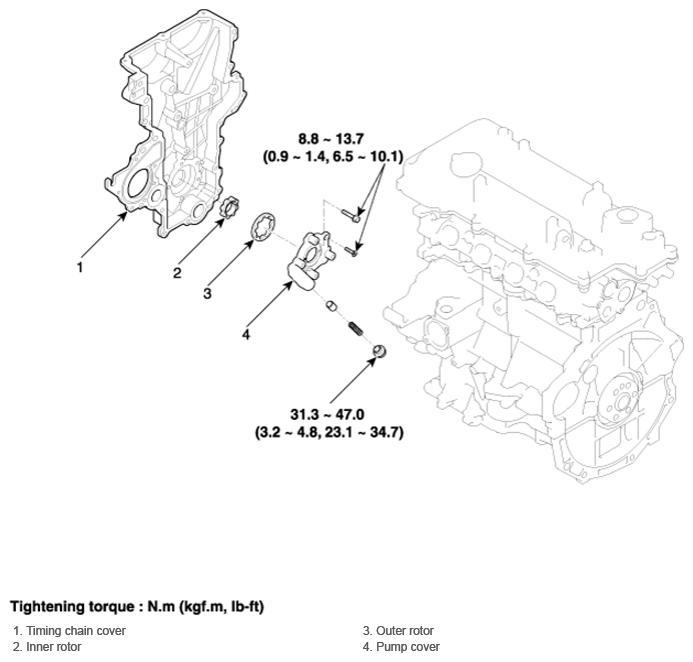

Fig 1: Oil Pump Components With Torque Specification
G12608771Courtesy of HYUNDAI MOTOR AMERICA
