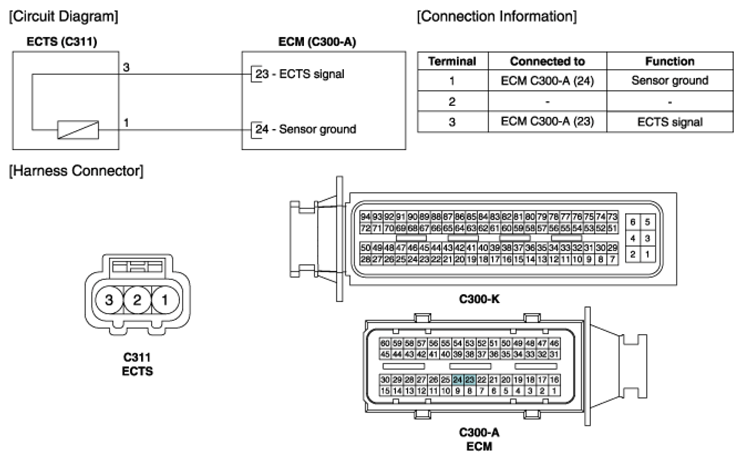

Home › Hyundai › 2018 › Tucson Value, FWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6L › Engine Coolant Temperature Sensor (ECTS) › Schematic Diagrams › Circuit Diagram
