Repair Procedures: Removal

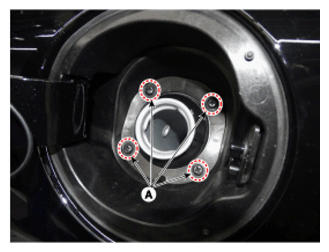

- Open the fuel filler door and unfasten the filler-neck assembly mounting screw (A).
- Remove the rear-LH wheel, tire, and the inner wheel house.

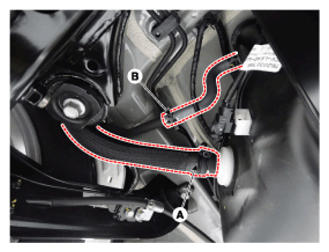

- Disconnect the fuel filter hose (A) and the ventilation hose (B).

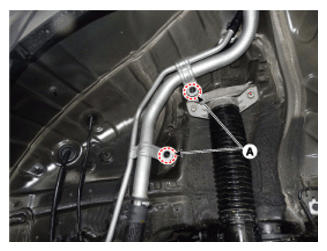

- Remove the filler-neck assembly from the vehicle after removing the bracket mounting nuts (A).
