Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "Release Residual Pressure in Fuel Line ")

  2. Turn the ignition switch OFF, and then remove battery (-) terminal.

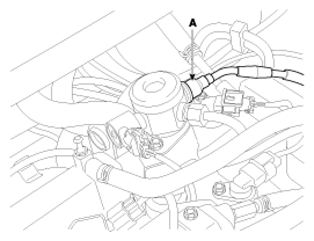

  3. Disconnect the fuel feed tube quick-connector (A).
    G12609145Courtesy of HYUNDAI MOTOR AMERICA
    NOTE: Open the clamp cover (B) before disconnect the quick connector. (If the clip is applied)
    G12609146Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: When removing the quick-connector with the clip removing tool (A), be careful not to damage the plastic clip (B).

    If the clip is damaged, fuel line leak can be occurred due to a bad connection.

    G12609147Courtesy of HYUNDAI MOTOR AMERICA

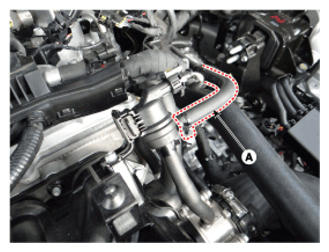

  4. Disconnect the vapor hose (A) which is connected from the PCSV.
    G12609148Courtesy of HYUNDAI MOTOR AMERICA
  5. Lift the vehicle.
  6. Remove the fuel tank.

    (Refer to Fuel Delivery System - "Fuel Tank ")

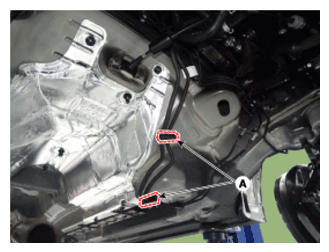

  7. Remove the vapor tube and low fuel line fixing clip (A) by using a common driver.
    G12609149Courtesy of HYUNDAI MOTOR AMERICA

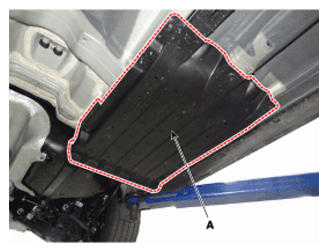

  8. Remove the side under cover (A) after loosening the mounting bolts.
    G12609150Courtesy of HYUNDAI MOTOR AMERICA

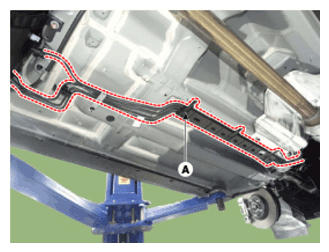

  9. Remove the fuel line (A) after loosening the mounting bolts and brackets.
    G12609151Courtesy of HYUNDAI MOTOR AMERICA
