Component Location

WARNING: This page is about a different car, the 2017 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

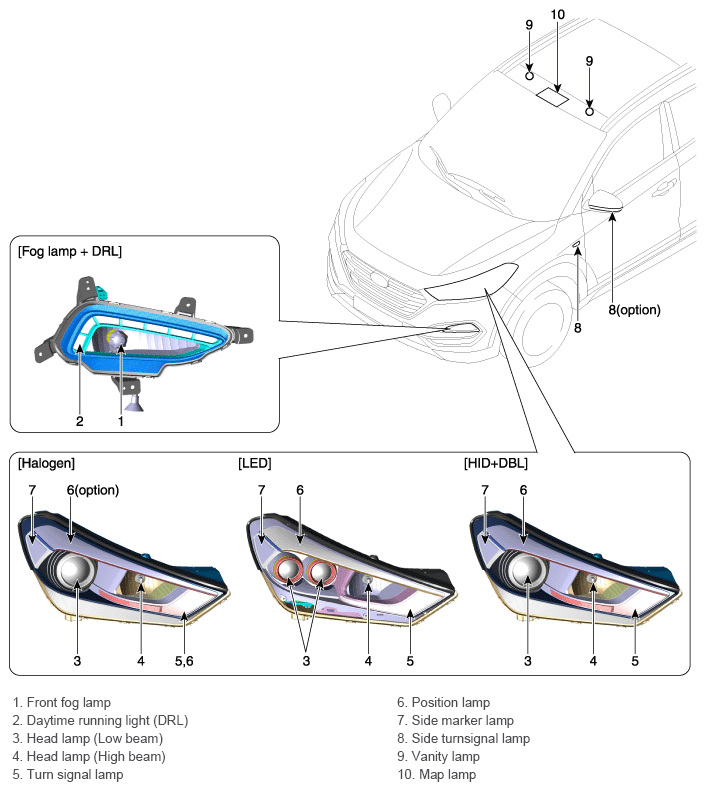

Fig 1: Lighting System Components (1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

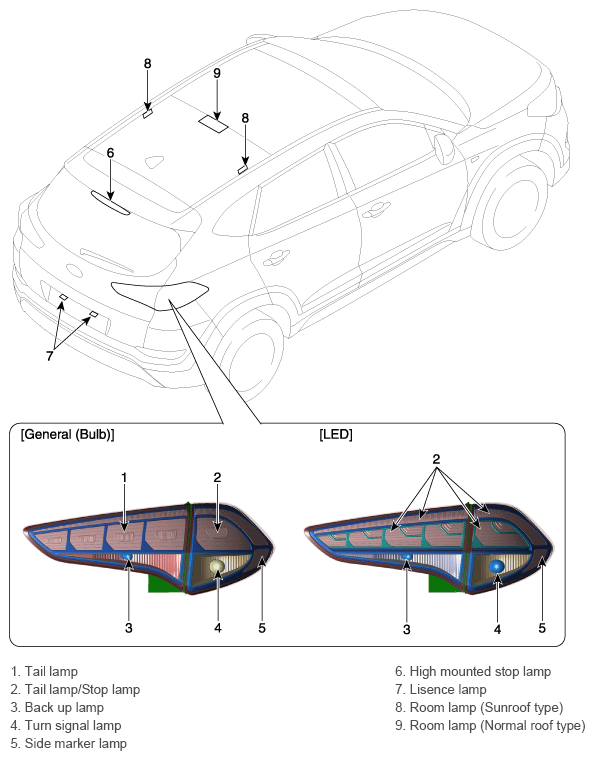

Fig 2: Lighting System Components (2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA
