Components And Components Location: Components

WARNING: This page is about a different car, the 2017 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

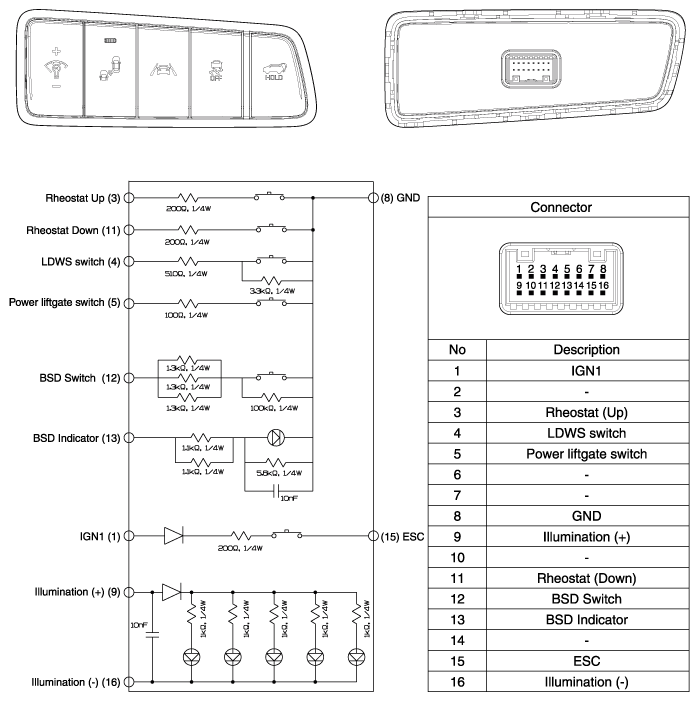

Fig 1: Rheostat Circuit, Connector And Terminal Description Chart

Courtesy of HYUNDAI MOTOR AMERICA
