Components And Components Location: Components: Notes

WARNING: This page is about a different car, the 2017 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

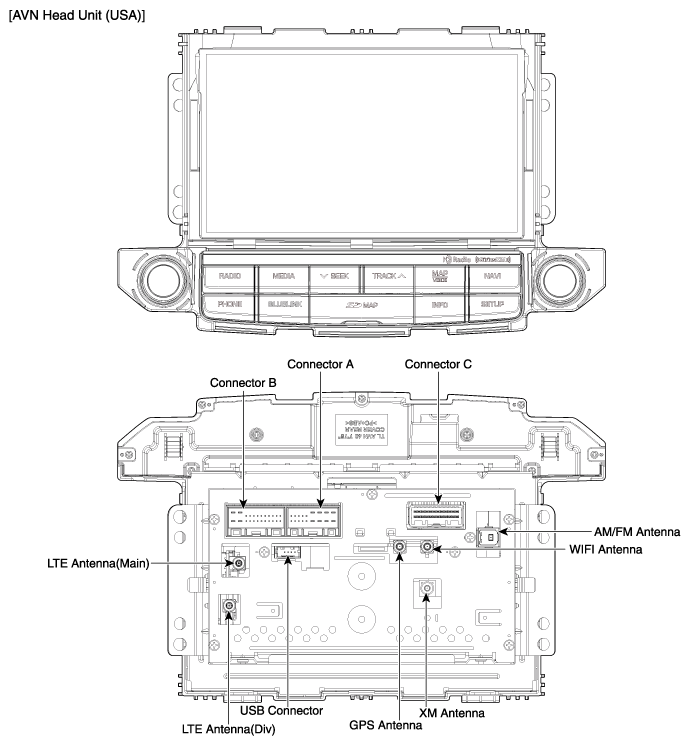

Fig 1: AVN Head Unit Components (USA)

Courtesy of HYUNDAI MOTOR AMERICA

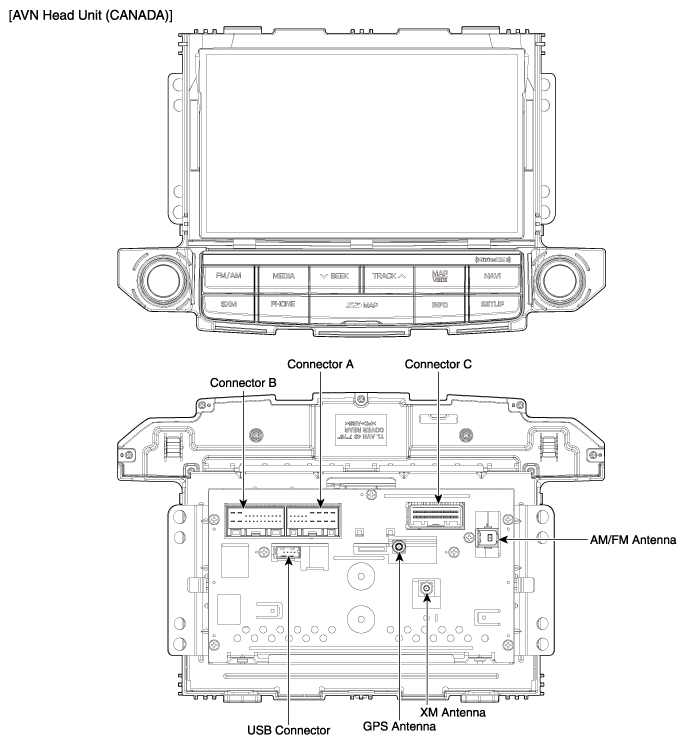

Fig 2: AVN Head Unit Components (CANADA)

Courtesy of HYUNDAI MOTOR AMERICA
