Repair Procedures: Inspection

WARNING: This page is about a different car, the 2017 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

Check for resistance between terminals in each switch position (LH).

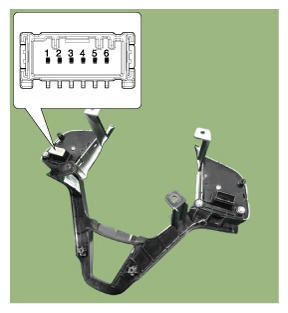

Fig 1: Checking Resistance Between Terminals In Switch Position (LH)

Courtesy of HYUNDAI MOTOR AMERICA

[LH: Audio + Hands Free]

Switch	Connector Terminal	Resistance (± 5%)
SEEK Up	2-5	430 Ω
SEEK Down		1.11 kΩ
MODE		2.11 kΩ
MUTE		3.11 kΩ
Volume (+)		4.61 kΩ
Volume (-)		6.81 kΩ
Voice		10.71 kΩ
SEND		18.91 kΩ
END		40.91 kΩ

Check for resistance between terminals in each switch position (RH).

Fig 2: Checking Resistance Between Terminals In Switch Position (RH)

Courtesy of HYUNDAI MOTOR AMERICA

[RH: Trip + Cruise]

Switch	Connector Terminal	Resistance (± 5%)
Cancel	3-5	330 Ω
SET -		550 Ω
RES +		880 Ω
Cruise ON/OFF		1.44 kΩ
Group	2-5	550 Ω
Trip Up		880 Ω
Trip Down		1.44 kΩ
ENTER		2.54 kΩ
