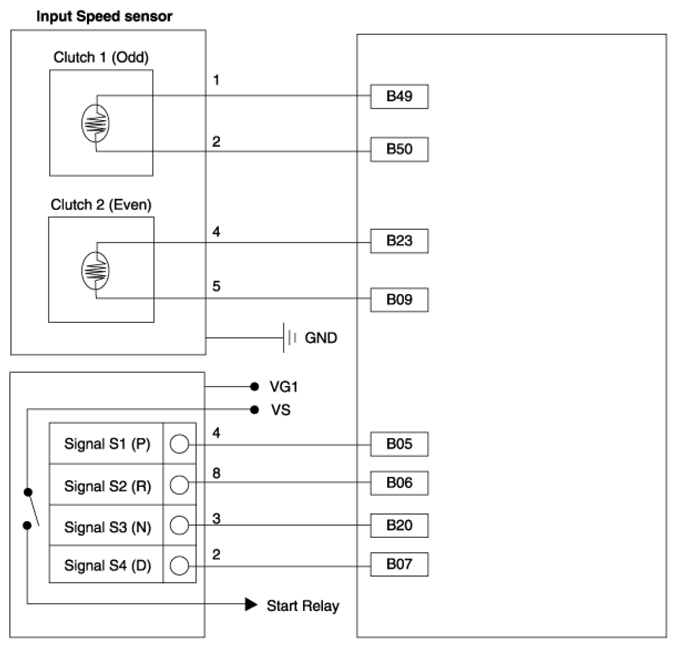

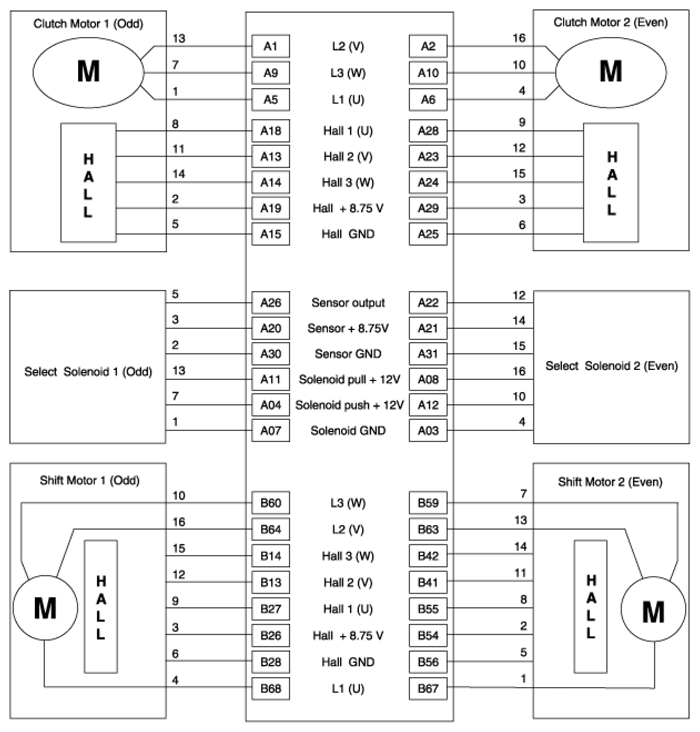

Home › Hyundai › 2018 › Tucson Value, FWD › Repair and Diagnosis › Transmission › Transmission Control Systems › Dual Clutch Transmission Control System - 1.6L › DCT Control Module (TCM) › Schematic Diagrams › Circuit Diagram
