Components and Components Location: Components

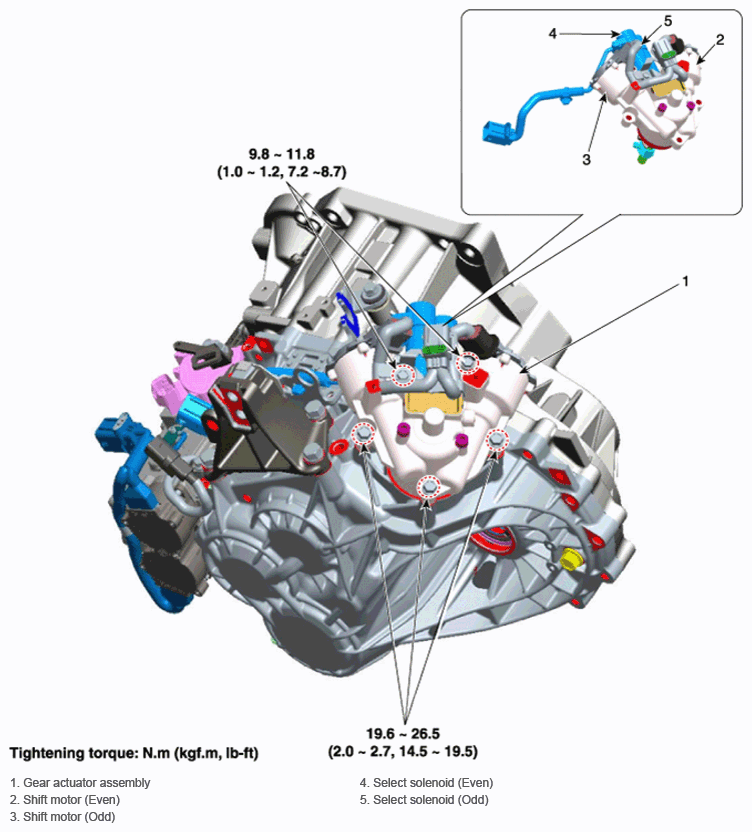

Fig 1: Gear Actuator Assembly Components With Torque Specification
G12609254Courtesy of HYUNDAI MOTOR AMERICA
