Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD ")

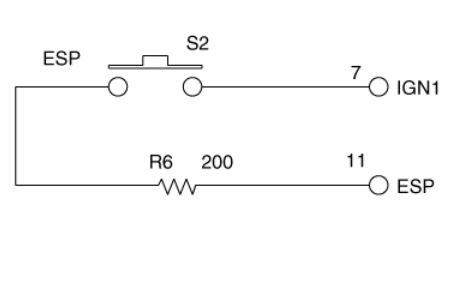

- Check the continuity between the switch terminals as the ESP OFF switch is engaged.

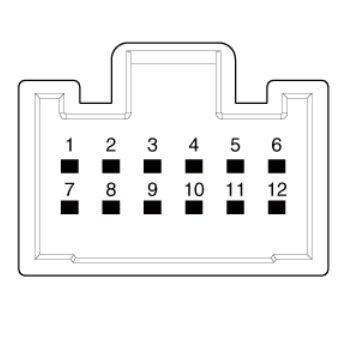

| No | Connector |
|---|---|
| 1 | IGS IGN - |
| 2 | - |
| 3 | GND |
| 4 | - |
| 5 | IGS |
| 6 | - |
| 7 | IGN1 |
| 8 | Tail |
| 9 | - |
| 10 | - |
| 11 | ESP |
| 12 | - |
