Components And Components Location: Components

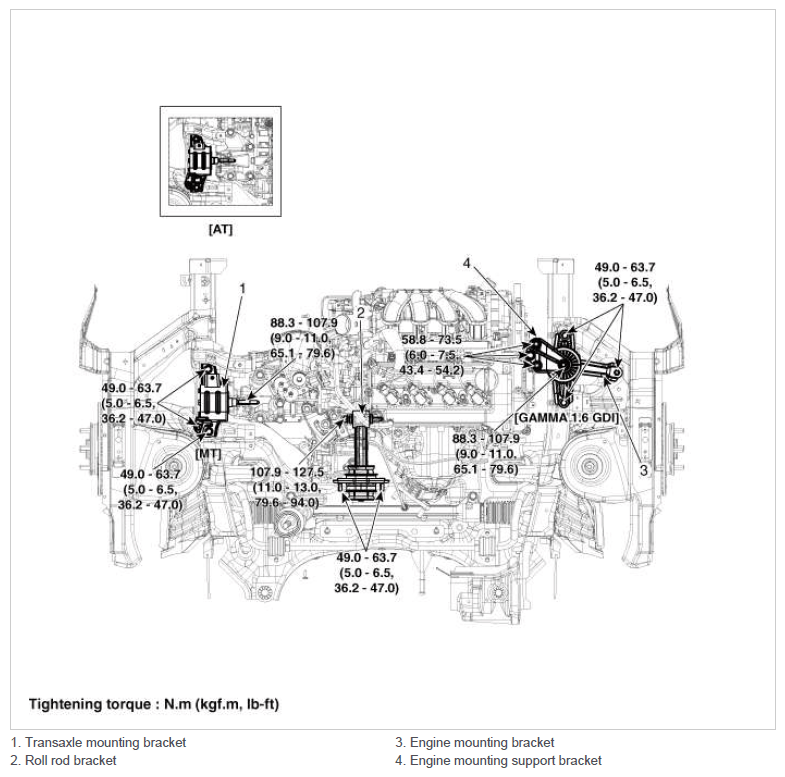

Fig 1: Engine Mounting Components Location With Torque Specification
G12594114Courtesy of HYUNDAI MOTOR AMERICA
