Components And Components Location: Components

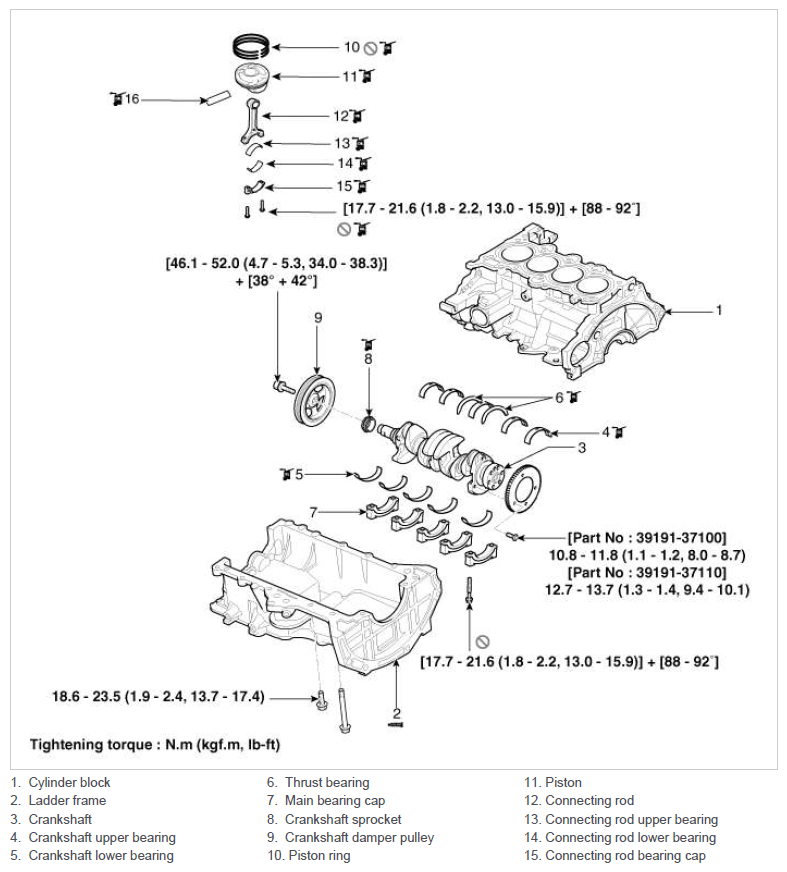

Fig 1: Cylinder Block Components With Torque Specification
G12594351Courtesy of HYUNDAI MOTOR AMERICA
