Hub Nut Tightening Sequence: Notes

Tighten the Hub Nuts as follows.
Tightening Torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

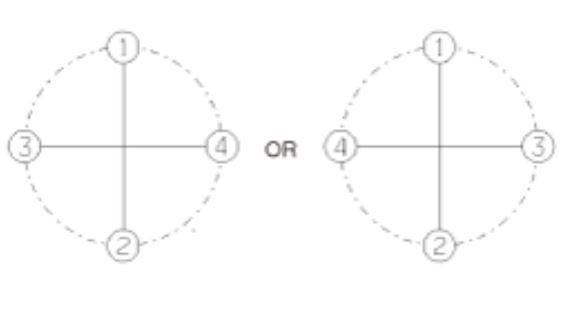

Fig 1: Hub Nut Tightening Sequence (1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Hub Nut Tightening Sequence (2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

When using an impact gun, final tightening torque should be checked using a torque wrench.
