Automatic Transaxle System
›
Automatic Transaxle
›
Components And Components Location
›
Components Location (2)
Components Location (2)

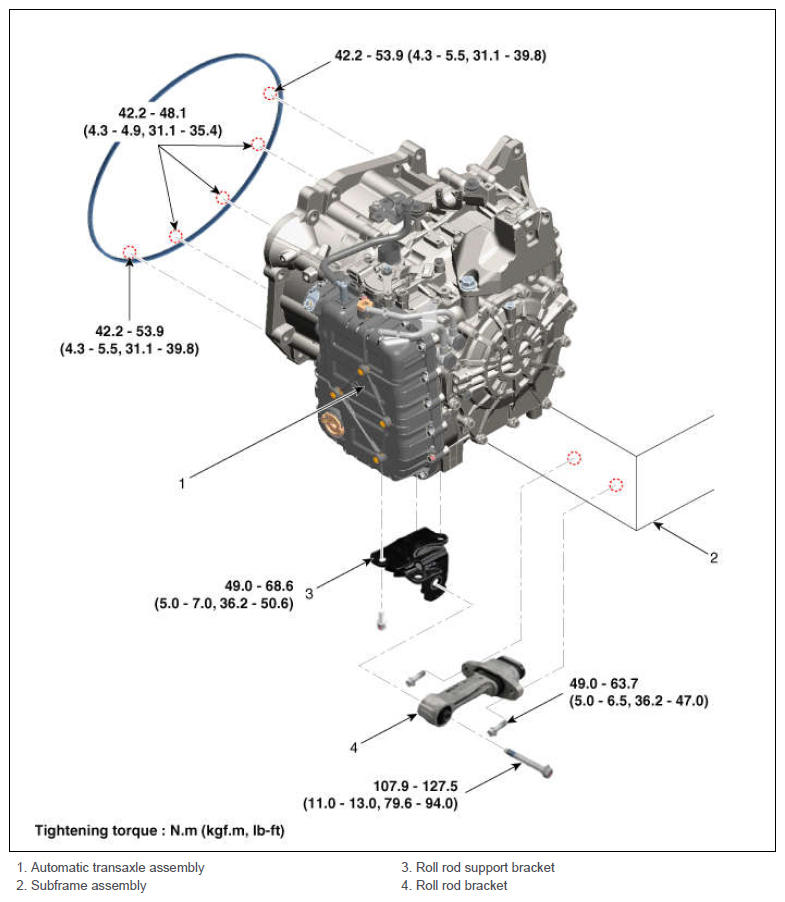

Fig 1: Locating Automatic Transaxle Components With Torque Specification (2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
