[Bank 1/Intake]
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")

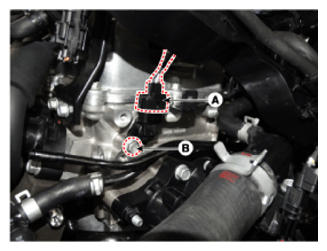

- Remove the wiring bracket (A) after releasing the fixing hooks (B).
- Disconnect the camshaft position sensor connector (A).
- Remove the installation bolt (B), and then remove the sensor.
