Camshaft Position Sensor (CMPS): Troubleshooting: Waveform

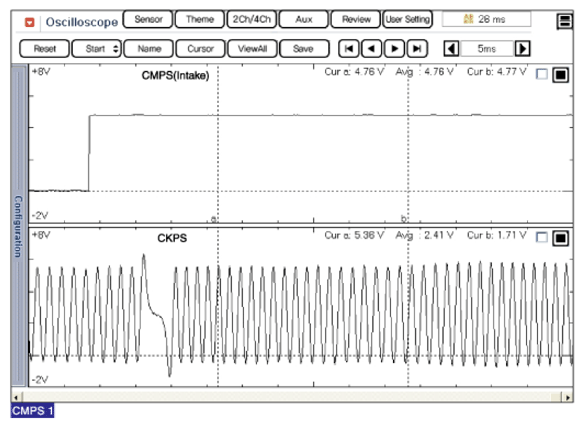

G12977073Courtesy of HYUNDAI MOTOR AMERICA

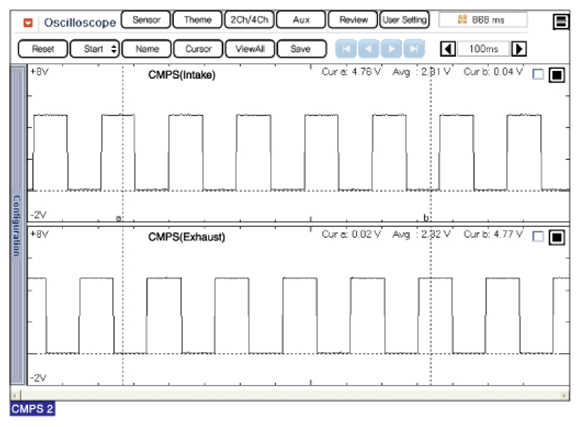

G12977074Courtesy of HYUNDAI MOTOR AMERICA
