Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) cable.
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

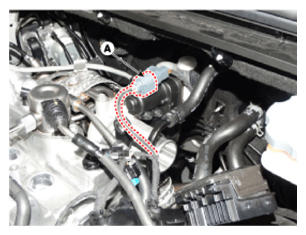

Disconnect the EWGA connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the exhaust manifold heat protector.
(Refer to Engine Mechanical System - "EXHAUST MANIFOLD ")

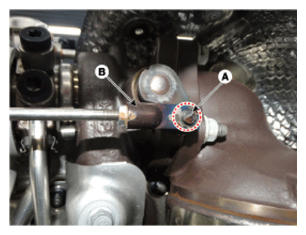

Remove the shaft link assembly (B) after removing the C-ring (A).

Courtesy of HYUNDAI MOTOR AMERICA

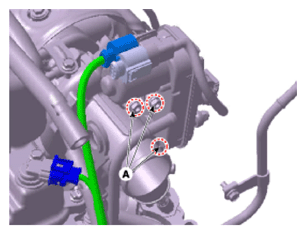

Remove the EWGA after removing the bolts (A).

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

When carrying the turbo charger, do not hold the rod of the turbo charge to prevent bending the rod.
