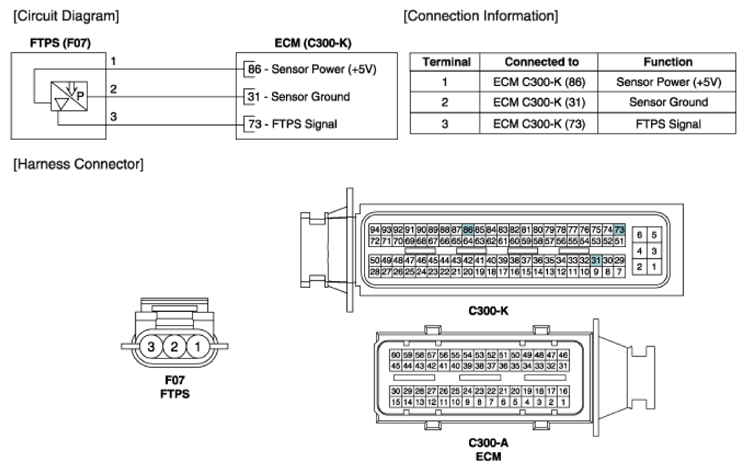

Home › Hyundai › 2019 › Elantra Eco › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.4L › Fuel Tank Pressure Sensor (FTPS) › Schematic Diagrams › Circuit Diagram
