[Bank 1/Sensor 1]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

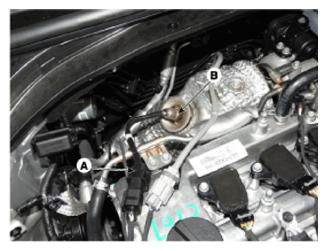

  2. Disconnect the connector (A), and then remove the sensor (B).
NOTE:
  • Note that the SST (Part No.: 09392-1Y100) is useful when removing the heated oxygen sensor.
G12977084Courtesy of HYUNDAI MOTOR AMERICA
G12977085Courtesy of HYUNDAI MOTOR AMERICA
