Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the floor console upper cover.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

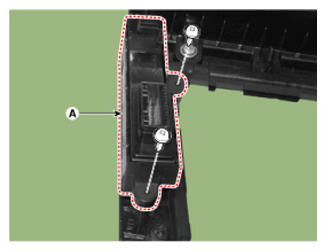

- Remove the ISG OFF switch (A) after loosening the mounting screws.
